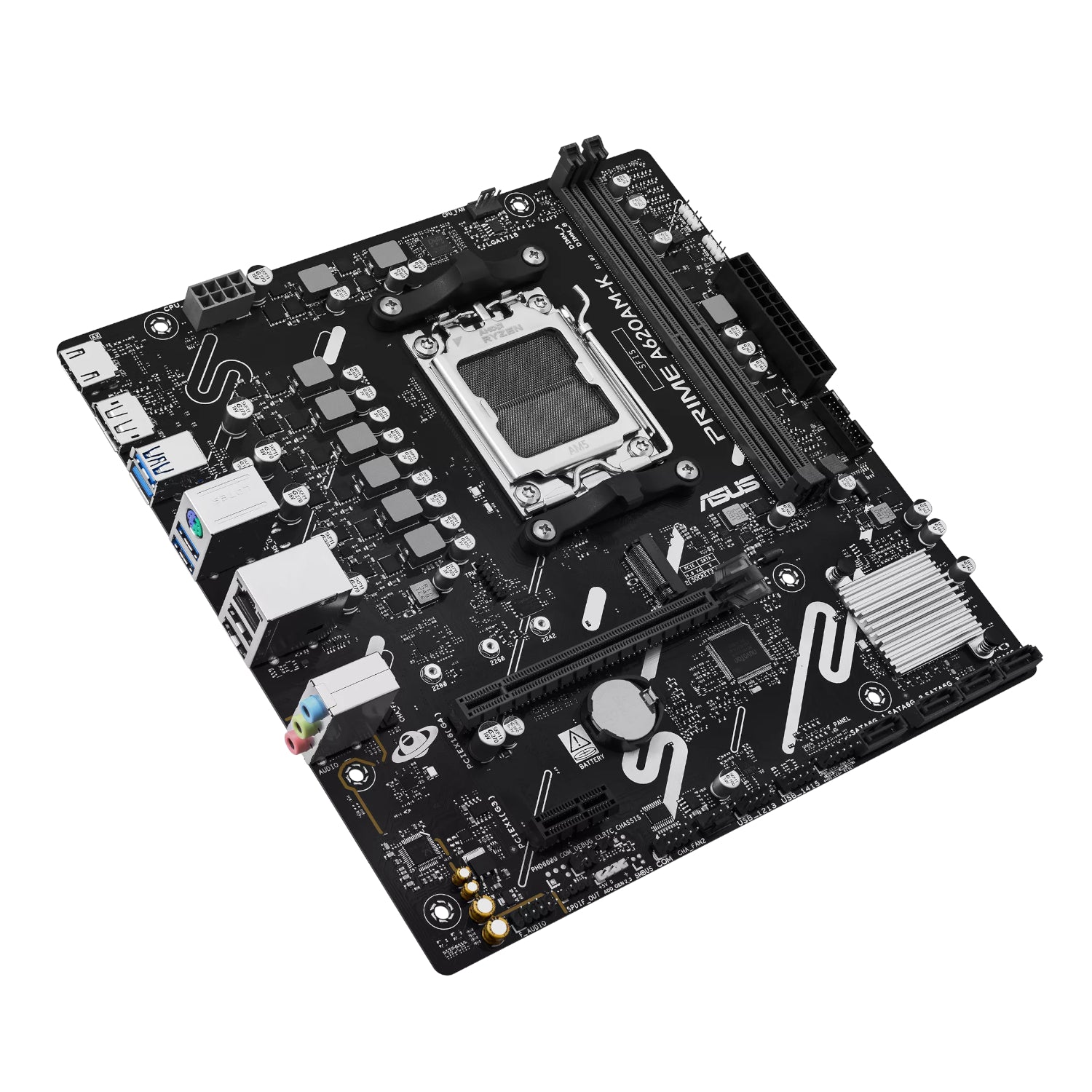

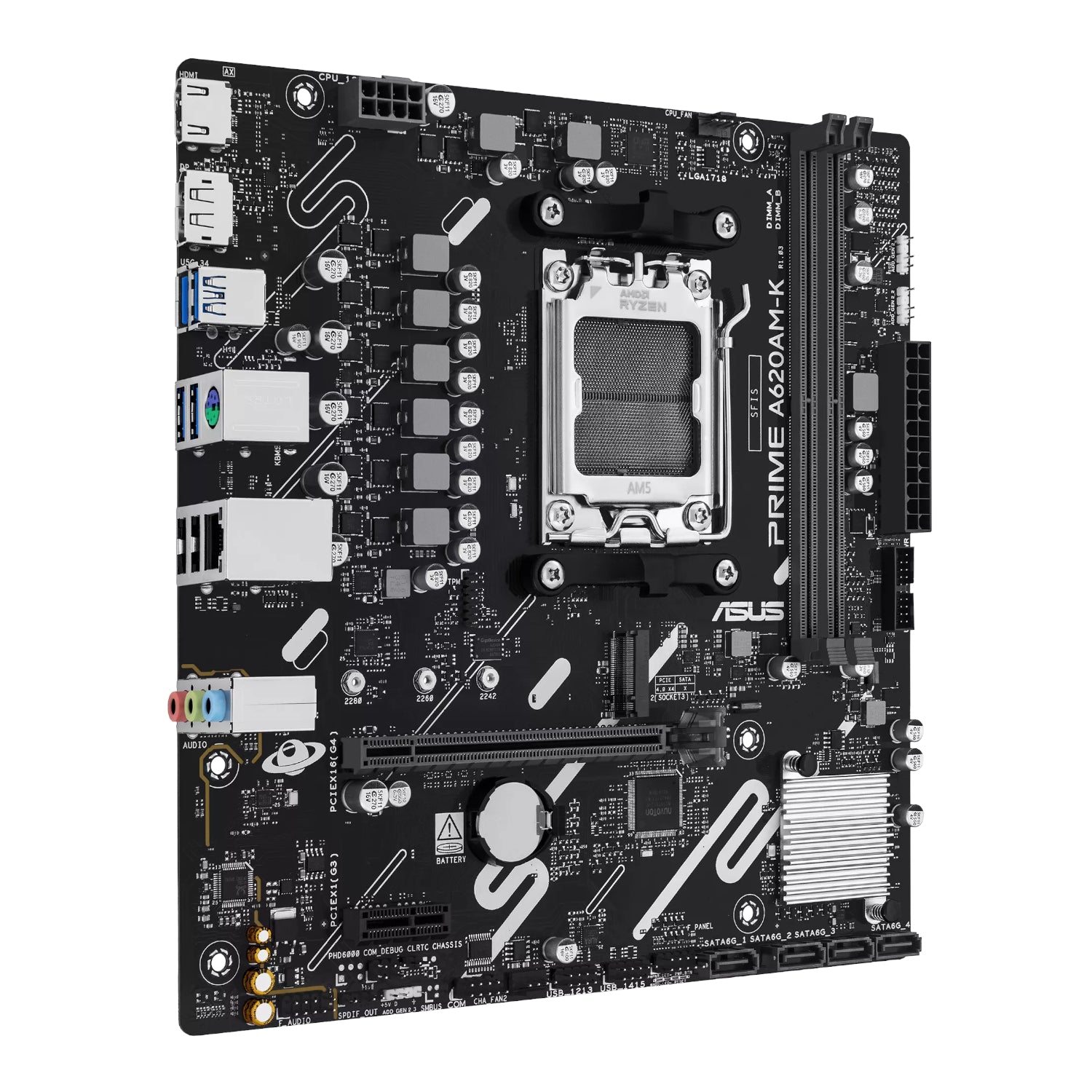

Asus PRIME A620AM-K AM5 M-ATX Motherboard

FEATURES:

• Leverage the power of AMD Ryzen™ 7000, 8000, and 9000 Series processors for a wide range of performance needs.
• Configure robust RAID arrays (0, 1, 10, or 5) for your storage needs, ensuring data integrity and speed.
• Experience crystal-clear audio with jack-detection and front panel jack-retasking for personalised sound configurations.
• Benefit from multiple USB ports for versatile peripheral connectivity, ensuring all your devices are supported.
• Enjoy rapid storage performance with an onboard M.2 slot, designed for swift data access and system responsiveness.

SPECIFICATIONS:

• CPU
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
  • Supports up to AMD 120W CPU
  • * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• Chipset
  • AMD A620A Chipset
• Memory
  • 2 x DIMM slots, max. 128GB, DDR5
  • Supports up to
  • 7200+MT/s(OC) with Ryzen™ 9000 & 7000 Series Processors,
  • 7600+MT/s(OC) with Ryzen™ 8000 Series Processors,
  • Non-ECC Un-buffered DIMM*
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI™ port***
  • * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  • 1 x PCIe 4.0 x16 slot (supports x16 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  • AMD A620A Chipset
  • 1 x PCIe 3.0 x1 slot
• Storage
  • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • AMD A620A Chipset
  • 4 x SATA 6Gb/s ports
• RAID Support
  • AMD RAIDXpert2 Technology*
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10
  • * Specifications vary by CPU types.
• Ethernet
  • 1 x Realtek 1Gb Ethernet
  • ASUS LANGuard
• USB
  • Rear USB (Total 6 ports)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 6 ports)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

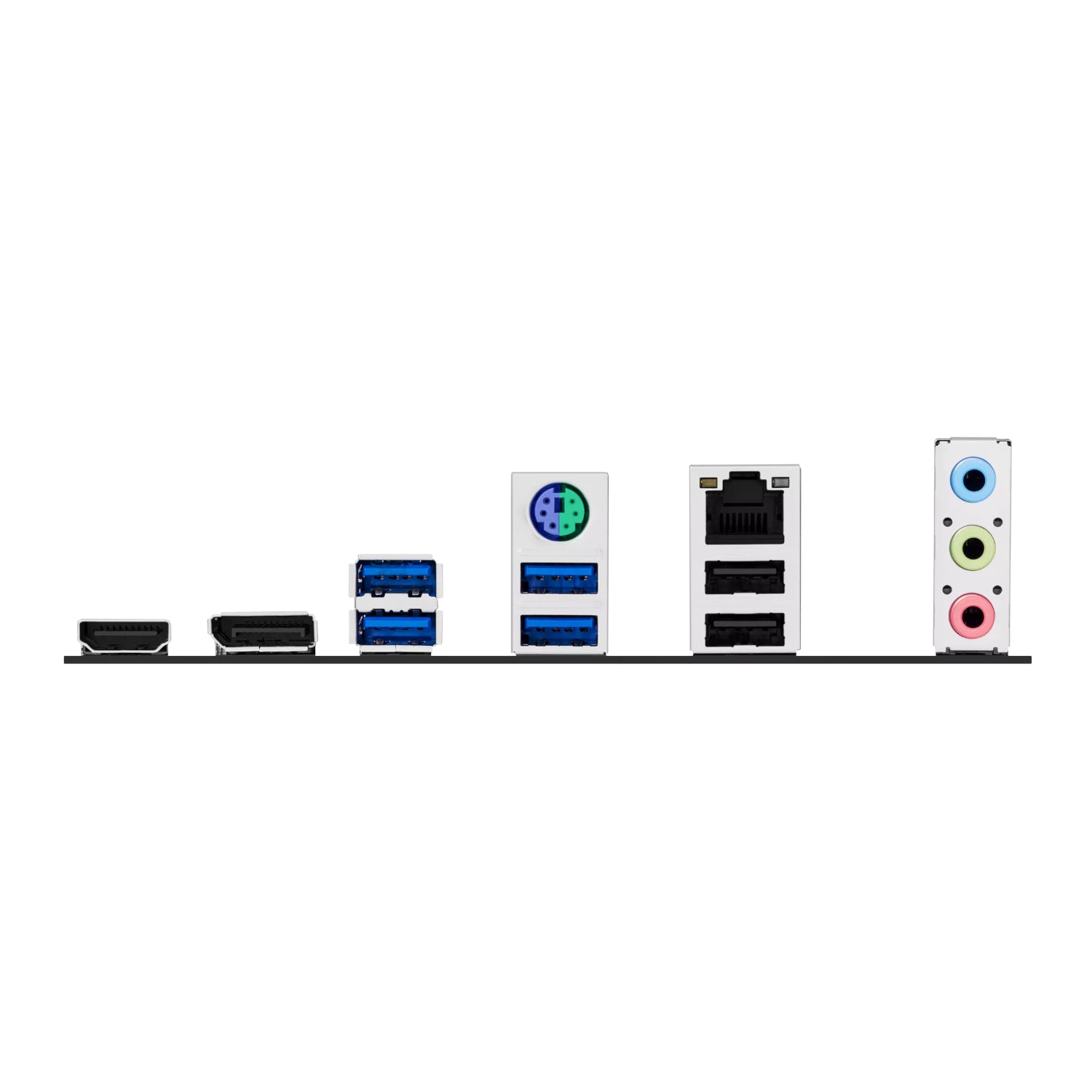

• Back Panel I/O Ports
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 keyboard/mouse combo port
• Internal I/O Connectors
  • Fan and Cooling Related
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
  • Power Related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V CPU Power connector
  • Storage Related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable RGB Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1 pin)
  • 1 x 10-1 pin Front Panel System header
• Special Features
  • ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage protection
  • SafeSlot Core
  • Stainless-steel back I/O
  • ASUS Q-Design
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
  • ASUS Thermal Solution
  • Aluminum heatsink design
  • Aura Sync
  • Addressable RGB Gen 2 headers
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Operating System
  • Windows 11, Windows 10 64-bit
• Form Factor
  • micro-ATX Form Factor
  • 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)

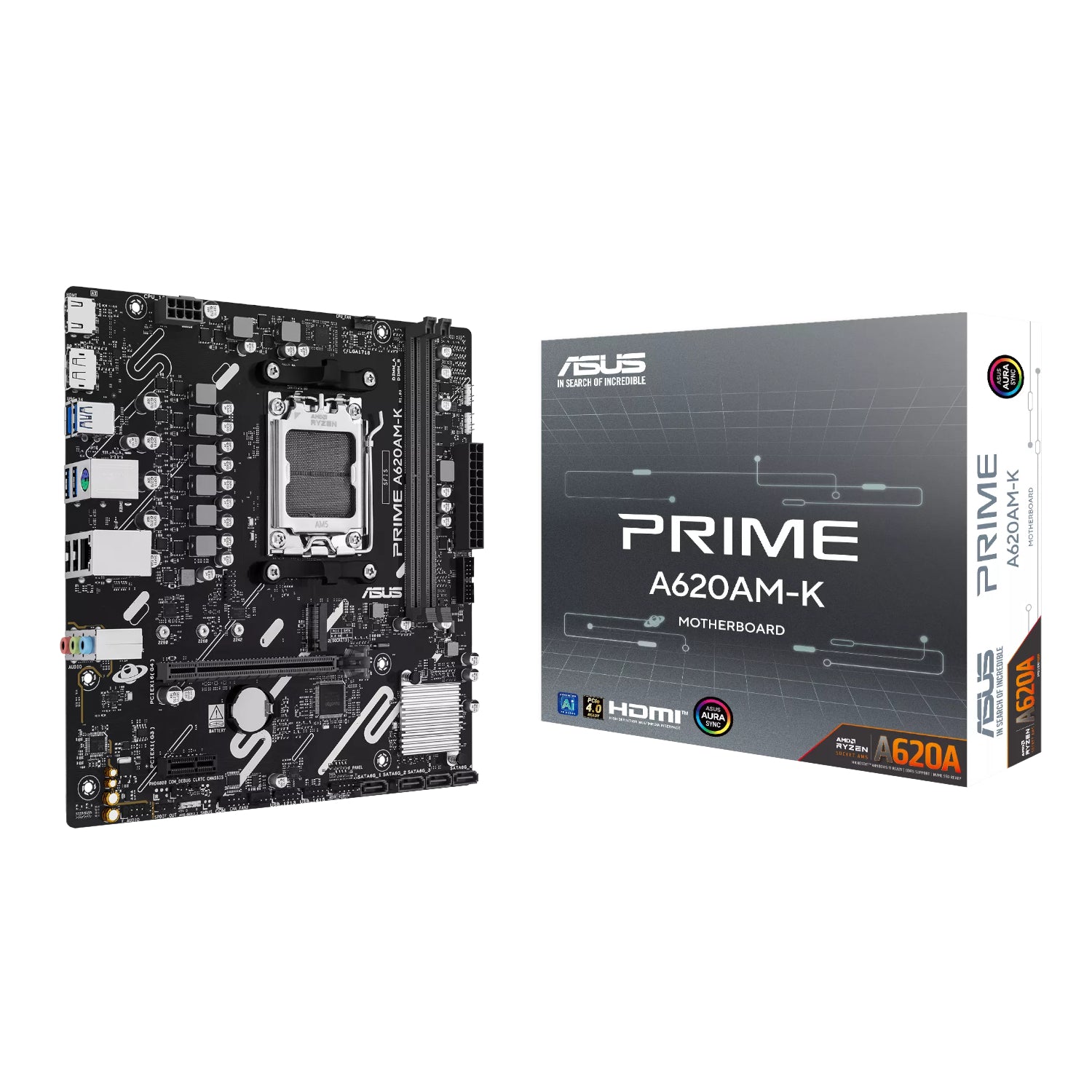

WHAT’S IN THE BOX:

• Asus PRIME A620AM-K AM5 M-ATX Motherboard – Black x1
• SATA 6Gb/s cables x2
• I/O shield x1
• Screw Package for M.2 SSD x1
• Quick Start Guide x1
