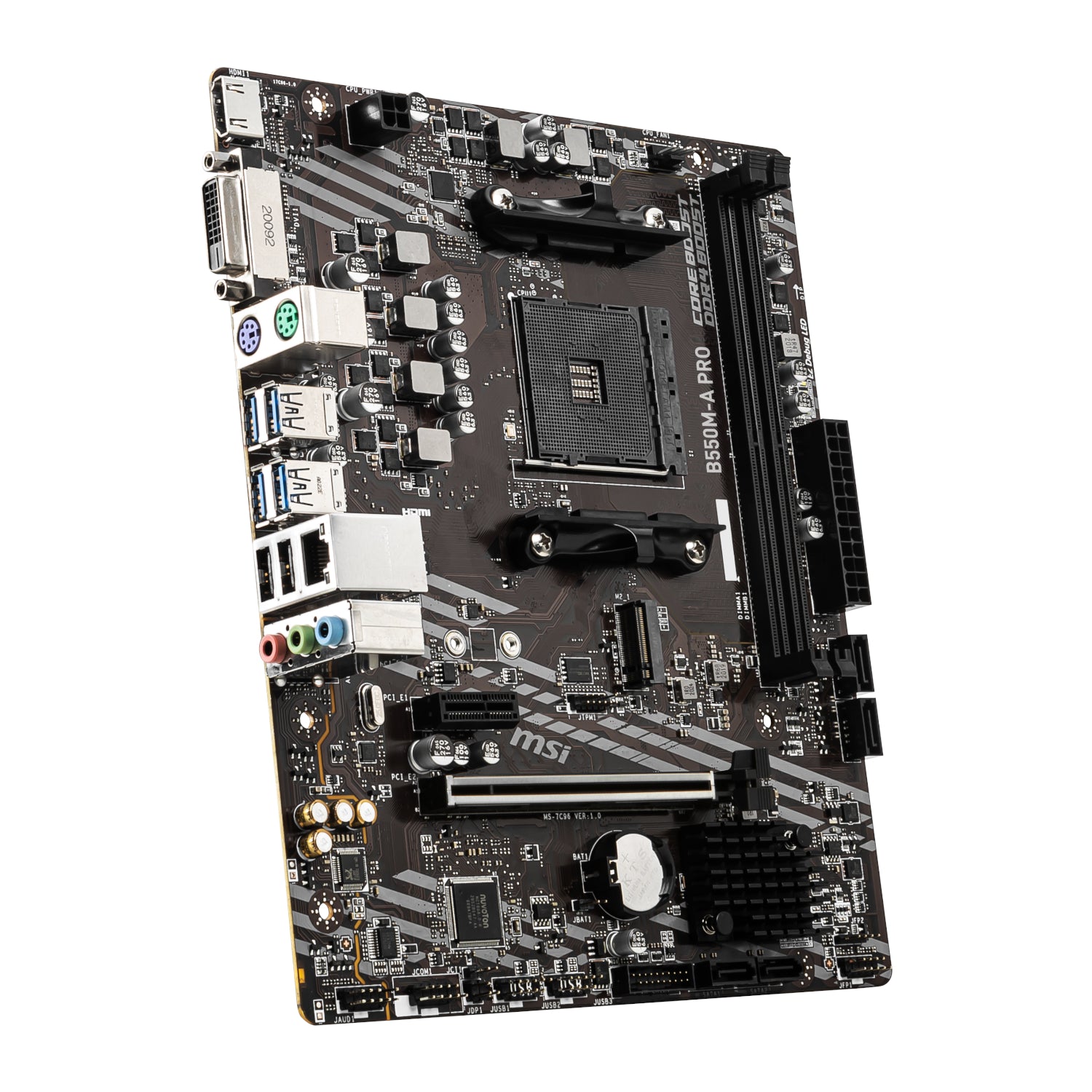

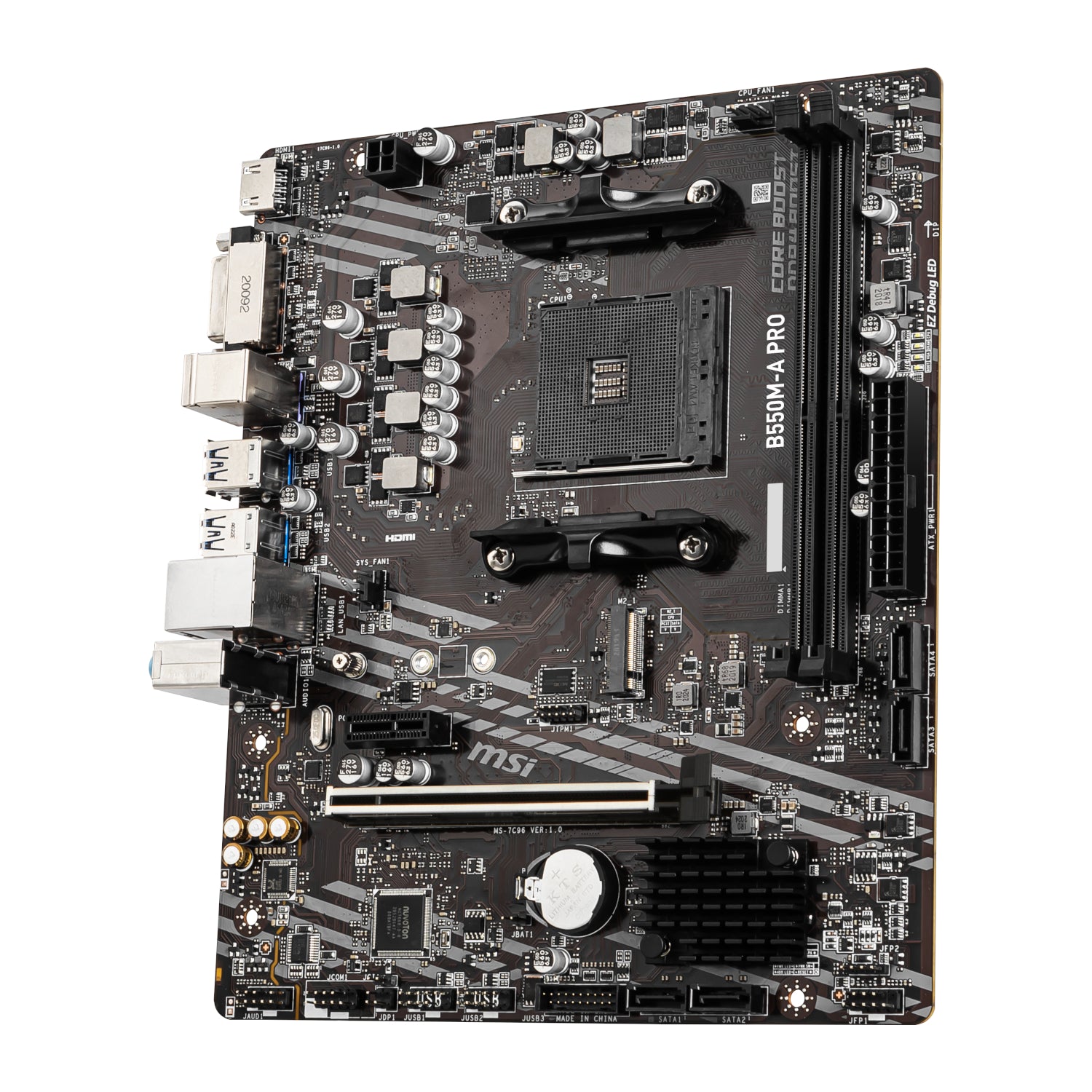

MSI B550M-A Pro AM4 M-ATX Motherboard

FEATURES:

• Build with confidence, knowing this AM4 motherboard supports a wide range of AMD Ryzen 5000 & 3000 Series processors (excluding specific models) and 4000 G-Series processors.
• Experience lightning-fast data transfer speeds with PCIe 4.0 support, ensuring your graphics card and high-speed storage operate at their maximum potential.
• Leverage the incredible speed of a Lightning Gen4 x4 M.2 slot, dramatically reducing load times for games and applications on your AM4 motherboard.
• Benefit from Core Boost technology, which provides a premium power delivery system for more cores and superior CPU performance.
• Achieve optimal memory performance and stability with DDR4 Boost, delivering clean data signals for reliable operation.
• Ensure system longevity and consistent performance with a 2oz thickened copper PCB, enhancing heat dissipation and overall reliability.
• Immerse yourself in high-fidelity sound with Audio Boost, delivering studio-grade audio quality directly to your headset.

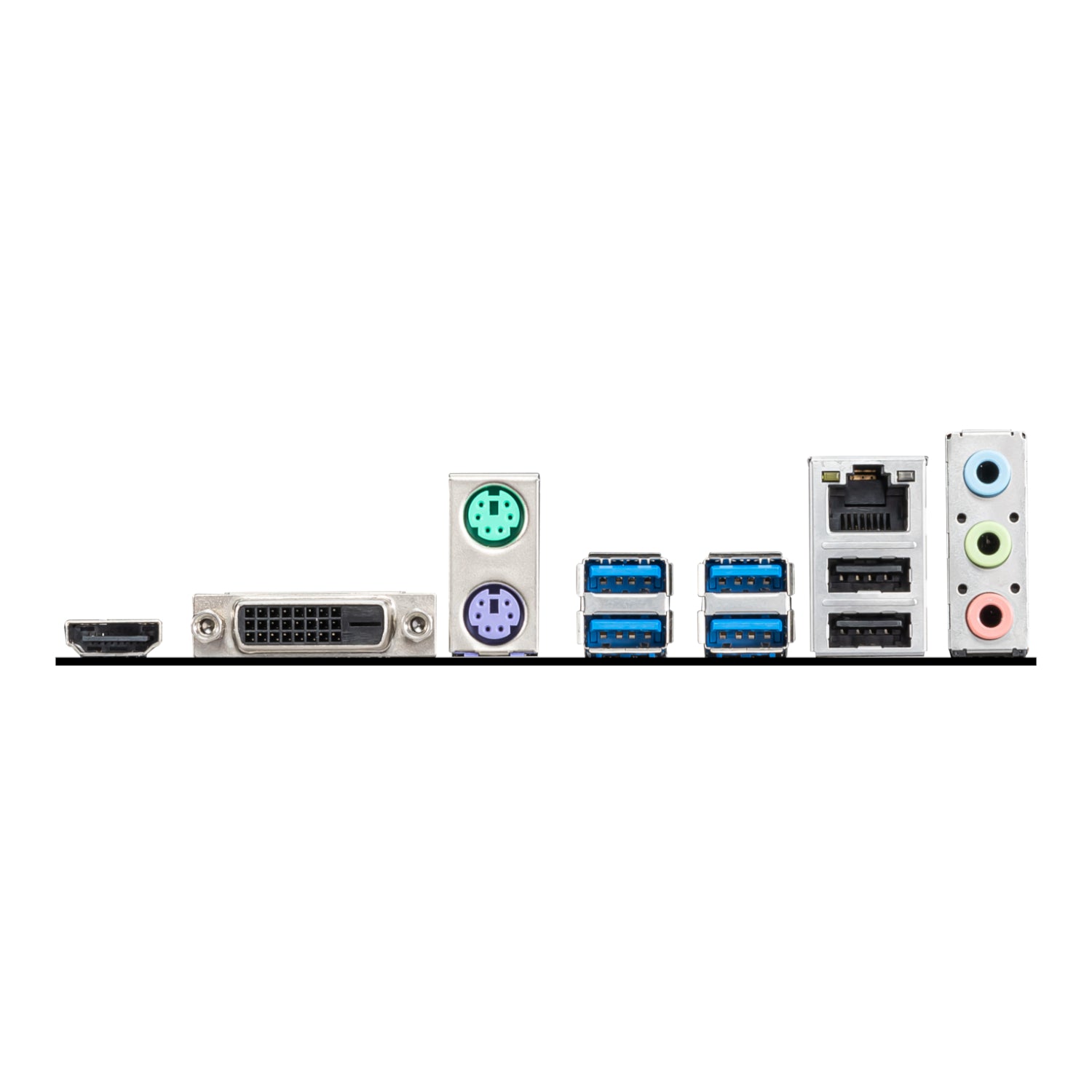

• Enjoy flexible display options with integrated HDMI and DVI-D ports, compatible with a wide array of monitors.
• Protect your data or boost storage performance with support for RAID 0, 1, and 10 configurations.

SPECIFICATIONS:

• CPU Support: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
• Socket: AMD Socket AM4
• Chipset: AMD® B550 Chipset
• Memory Support:
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory: 64
• PCI-E x16: 1
• PCI-E Gen: Gen4 / Gen3
• PCI-E x1: 1
• SATAIII: 4
• M.2 Slot: 1
• RAID: 0/1/10
• TPM (header): 1
• USB 3.2 ports (Front): 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 4(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 2 (Type A)
• Serial ports(Front): 1
• Audio ports (Rear): Realtek® ALC892/ALC897 Codec
• DVI-D: 1
• HDMI: 1
• DirectX:12
• OS Support: Support for Windows® 10 64-bit
• Form Factor: M-ATX

WHAT’S IN THE BOX:

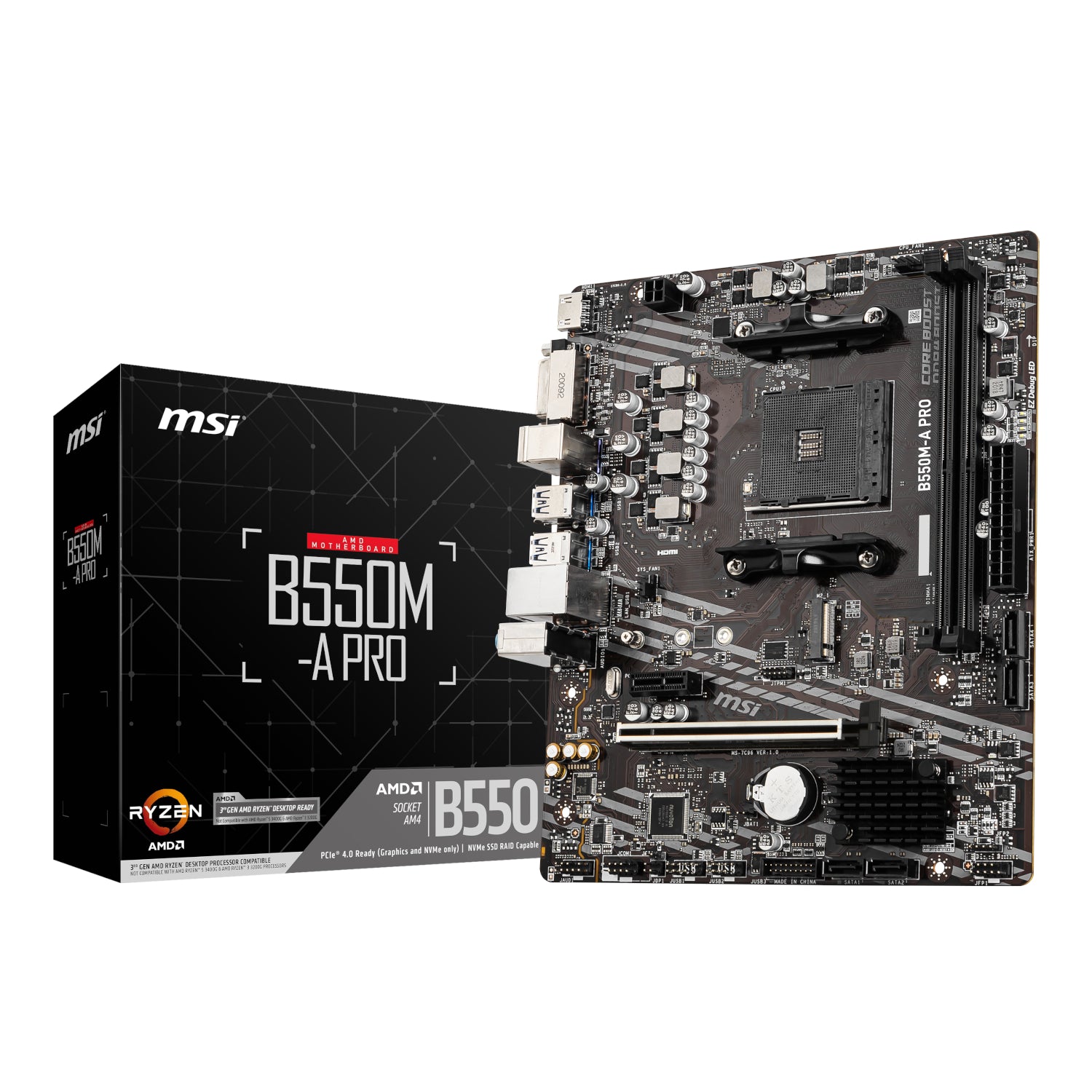

• MSI B550M-A Pro AM4 M-ATX Motherboard – Black x1
• SATA Cables x2
• Driver DVD x1
• I/O Shield x1
• Quick Installation Guide x1
